Evaporator
Tech Tips
The Elite Series evaporators should be mounted where the hose
adapters
point upward.
This is important, as mounting the unit in any other orientation
will not allow condensation to properly drain
from the unit.
When installing the thermostat capillary tube into the unit, it
should not be pushed to the bottom
of the unit.
If installed this way, the thermostat will run based upon condensation
water temperature rather than coil temperature, causing the freeze
up of the coil.
If you are running a smooth firewall, install the evaporator prior
to painting by welding the mounting brackets to the inner firewall,
to maintain the smooth appearance in the engine compartment.
|
|
|
DUAL
EVAPORATOR SYSTEM
THIS SYSTEM IS DESIGNED SPECIFICALLY FOR
STATION WAGONS,SEDAN DELIVERY'S AND PANEL TRUCKS.
|
|
This
new climate control system provides you the comfort of having
Air Conditioning Heat, and Optional Dehumidified Defrost in
the front of the vehicle and Air Conditioning and Optional Hear
in the Rear.
This package comes with either an Elite Standard,Elite Deluxe
or if you wish you can use our Underdash Evaporator for the
front
and a four vent evaporator for the rear.

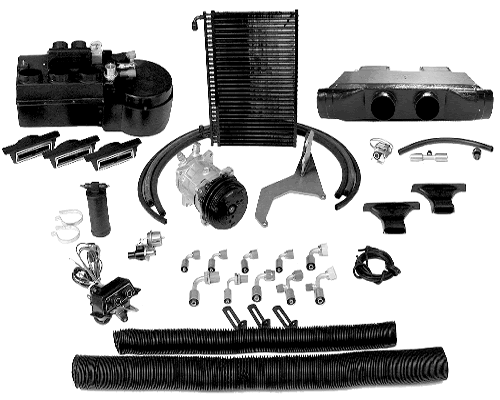

This kit includes a Sanden 709 Compressor, Compressor Bracket,
Hose Kit with drier, condenser and safety switch.
|
-
COMPLETE
PACKAGES
HEAT,COOL
WITH DEFROST FRONT/HEAT & COOL REAR
"Due
To The Many Different Applications Please Call For Price
Quote"
DUAL EVAPORATOR SYSTEM W/ ELITE STANDARD
* 75-0001
DUAL EVAPORATOR SYSTEM W/ ELITE DELUXE * 75-0002
DUAL EVAPORATOR SYSTEM W/ UNDERDASH EVAPORATOR * 75-0003
HEAT, COOL AND DEFROST/ COOL ONLY REAR
DUAL EVAPORATOR SYSTEM W/ ELITE STANDARD * 75-0004
DUAL EVAPORATOR SYSTEM W/ ELITE DELUXE * 75-0005
DUAL EVAPORATOR SYSTEM W/ UNDERDASH EVAPORATOR * 75-0006
|
|
