Engine Brackets & Engine Pulleys,Air Conditioning Part's for Street Rod's & Hot Rod's Cars

March Performance Pulleys and Brackets.

Bracket Tech Tips
Compressor Brackets
The Compressor, Alternator and Power Steering Brackets as well as Pulleys offered for Chevrolet V8's are specific as to the Water Pump used
on the motor.
The compressor brackets offered are for the Sanden
508 aftermarket compressor.
Although not as common, the Sanden 510 and 709 will
also work on
these brackets. However, Sanden compressors used in factory A/C systems will not work with these brackets. Alternator Brackets
The alternator brackets are designed for GM internally or externally regulated alternators.
The brackets are designed for alternators with
12 o'clock mounting
tabs meaning that the tabs are directly opposite of
each other.
Power Steering Brackets
Our line of power steering brackets are designed to mount Chevrolet power steering
pumps with
attached reservoirs.
As there are several designs, any pump with two attachment points on the back may be used with the correct V8 power steering pulley.

Click On Part Number To View Image

Chevrolet

PART NUMBER

1955-1962 Six Cylinder 235 cid.	10-3011
Small Block "Top Mount" Steel Bracket V-Belt	10-1000
Small Block "Top Mount Tuned Port" Steel Bracket V-Belt	10-1120
Small Block "Top Mount Vortec Heads" Steel Bracket V-Belt	10-1290
Small Block "Top Mount Tuned Port Extra Clearance " V-Belt	10-1020
Small Block "Side Mount Tuned Port Extra Clearance " V-Belt	10-1191
Small Block "Side Mount Tuned Port" V-Belt	10-1130
Small Block "Side Mount Vortec Heads" V-Belt	10-1330
Small Block "Steel" Serpentine Pulley System. (NEW)	10-3050
Small Block March Billet Serpentine Ultra Kit. (NEW)	11-2025
Small Block Top Mount Billet Serpentine (short water pump)	11-8000
Small Block Top Mount Billet Serpentine Vortec Heads (short water pump)	11-8006
Small Block Top Mount Billet Serpentine LT1 ZZ4 (short water pump)	11-8014
Small Block Side Mount Billet V-Belt (short & long water pump)	11-8002
Small Block Top Mount Billet V-Belt (for use with no holes in heads)	11-8004
Big Block Top Mount "Steel" Bracket V-Belt	10-1040
Big Block Side Mount "Steel" Bracket V-Belt	10-1180
Big Block Top Mount Tuned Port "Steel" Bracket V-Belt	10-1210
Big Block Side Mount Billet Aluminum (short water pump)	11-8135
348-409 Side Mount "Steel" & "Billet Aluminum" Brackets V-Belt	10-1260
Low Mount "Steel"Brackets Small Block & Big Block Applications	10-1060
Power Steering Pump Brackets Small Block & Big Block Applications	10-4001

Ford

PART NUMBER

1937-1953 Ford Flathead V-Belt Bracket Kits	10-0037
170 & 200 6-Cylinder "Steel" Bracket Kit	10-7515
292 Y Block "Steel" Bracket Kit (compressor on passenger side)	10-3020
289,302,351 Windsor Billet V-Belt Bracket kit	11-8016
289,302,351 Windsor V-Belt "Steel" Bracket kit	10-1050
5.0 Liter (Pickup,Bronco & Van Bracket Kit)	10-7102
302 Street Rod Billet Serpentine Kit (with & with out power steering)	10-0020
351 & 400 Cleveland & Modified "Steel" Bracket Kit	10-7005
460 "Steel" Bracket Kit	10-7003
429-460 Serpentine Kit (with & with out power steering)	10-0255

Chrysler

PART NUMBER

Chrysler 315-340-360 Serpentine Kit	10-0425
Chrysler 383-400-440 Serpentine Kit	10-0540

Pontiac

PART NUMBER

Pontiac 326,350,389,400,455 C.I. Serpentine Kit

10-3120

Special Brackets & Adapters Plates

PART NUMBER

York To Sanden Adapter Plate	10-0000
Cadillac 472-500 C.I. Compressor Bracket	10-0500
Universal Mounting Cradle For Sanden	10-1360

ENGINE DRIVE PULLEYS,STEEL & ALUMINUM GM & Ford

Pulleys

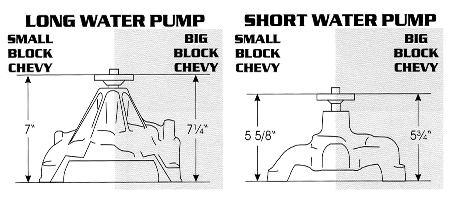

Long & Short Water Pumps Dimensions For Chevrolet.

The Compressor, Alternator and Power Steering Brackets as well as Pulleys offered for Chevrolet V8's are specific as to the water pump used on the motor. Above are the dimensions for Long & Short Water Pumps for both Small Block & Big Block Chevrolet.
